Visibility
Review daylight exposure, viewing distance, screen angle and content before confirming brightness and pixel pitch.
02 · NEXSHOWS PRODUCT FAMILY
Outdoor LED display systems for fixed installations.
An outdoor LED display must be planned around daylight, weather exposure, viewing distance, structural access and long-term maintenance. NexShows outdoor fixed systems cover commercial facades, roadside media and other public-facing screens with different cabinet grids, pitch ranges and front- or rear-service approaches.
5 seriesDedicated series pagesDirect project inquiry
BUYER CHECKPOINTS
How to specify an outdoor LED display
Define the screen location and viewing direction first. Brightness and pixel pitch should be considered with the actual viewing distance, while cabinet format, protection, ventilation, steelwork and service access need to fit the building or supporting structure.
Outdoor protection
Confirm the required front and rear protection, drainage, ventilation and the environmental conditions at the installation site.
Maintenance access
Choose front or rear service from the real clearance, structure and safe access available after installation.
SELECT A SERIES
Every card leads to its own series page. This family page stays focused on the systems that match the same project type.
01
OUTDOOR FIXED LED DISPLAY

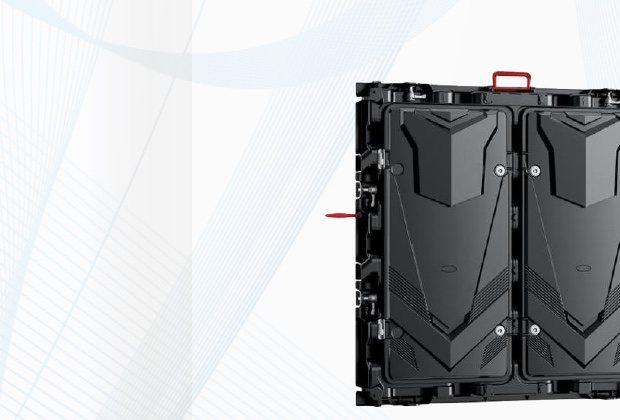

LK-FA Series
LK-FA is an outdoor fixed LED display series for roadside media, commercial settings and building exteriors. The supplied configuration shows a die-casting magnesium cabinet, P2.5 to P10 coverage and a 960 × 960 mm cabinet format.
- Application
- Roadside media
- Pixel-pitch coverage
- P2.5, P3.076, P4, P5, P5.926, P6.667, P8 and P10
02
OUTDOOR FULL FRONT-SERVICE LED

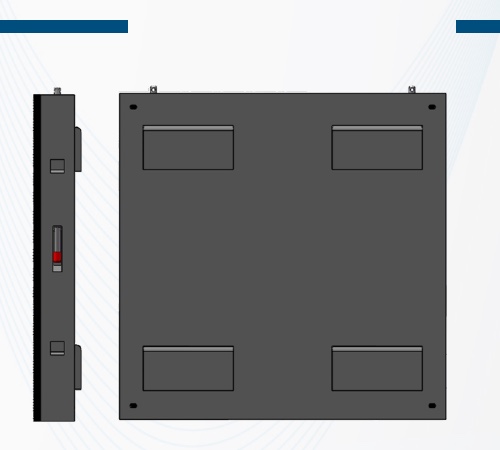

LK-OF Full Front Service
LK-OF is an outdoor fixed LED display range designed around full front-service access. The supplied data shows two module families, broad pixel-pitch coverage and 1000 × 1000 mm or 960 × 960 mm cabinet formats.
- Application
- Outdoor advertising
- Pixel-pitch coverage
- P2.976 to P10 across supplied configurations
03
OUTDOOR ENERGY-SAVING LED DISPLAY

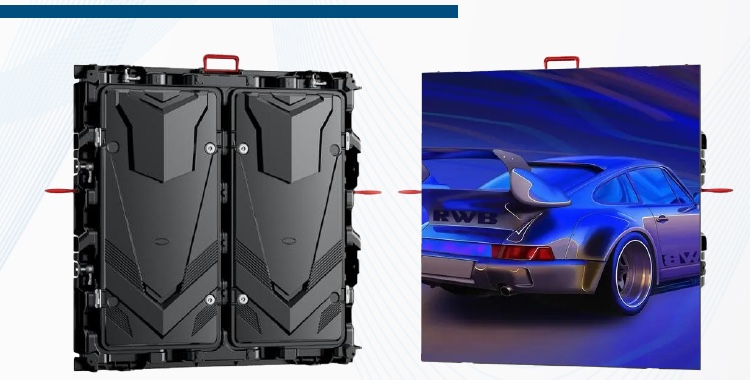

LK-ES Energy-Saving Series
LK-ES is an outdoor LED display series supplied with energy-saving configuration options. The material shows 320 × 160 mm and 320 × 320 mm module families, P3.33 to P10 pitch coverage and a 960 × 960 mm cabinet format.
- Application
- Outdoor media
- Pixel-pitch coverage
- P3.33 to P10 across supplied configurations
04
OUTDOOR FRONT-SERVICE LED DISPLAY

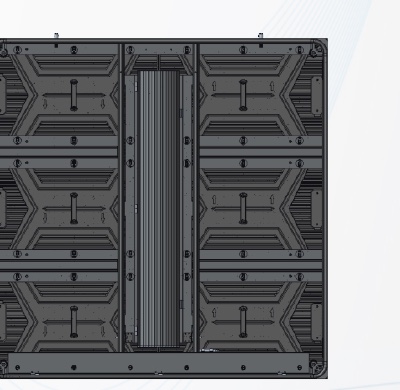

LK-FB1 Front Service
LK-FB1 is an outdoor front-service LED display series. The supplied data shows P4 to P10 pitch options, 480 × 320 mm panel modules, a 960 × 960 mm cabinet and front-service access.
- Application
- Outdoor media
- Pixel-pitch coverage
- P4, P5, P6.67, P8 and P10
05
OUTDOOR FRONT-SERVICE LED DISPLAY

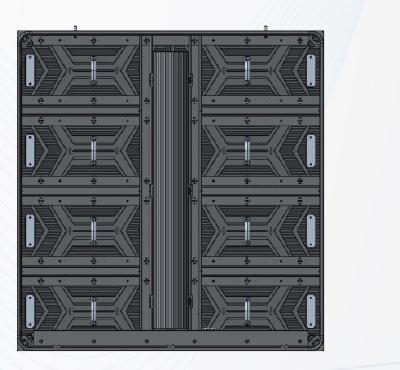

LK-FB2 Front Service
LK-FB2 is an outdoor front-service LED display series. The supplied configuration shows P3.91 to P10.41 options, 500 × 250 mm panel modules, a 1000 × 1000 mm cabinet and front-service access.
- Application
- Outdoor advertising
- Pixel-pitch coverage
- P3.91, P4.81, P6.25, P7.81 and P10.41
APPLICATIONS & PLANNING
Connect the product list to the real project.
Use the application references and buying guides to confirm the environment, viewing plan, service route and information needed for the first technical discussion.
COMMON QUESTIONS
Questions buyers ask before selecting this family.
How bright should an outdoor LED display be?
Required brightness changes with orientation, direct sunlight, operating hours and local conditions. Product figures are a starting point; the site conditions should decide the final target.
Is front-service or rear-service better outdoors?
Neither is universally better. Front service helps where rear clearance is limited, while rear service may suit structures with a safe maintenance corridor. The supporting frame must be designed around the chosen method.
What information is needed for an outdoor LED quotation?
Send the country, site type, screen width and height, viewing distance, mounting concept, preferred pitch, delivery target and any available photos or drawings.
NEED A RECOMMENDATION?
Tell NexShows what needs to work on site.
Share the country, name, phone, email, target delivery date and preferred pixel pitch. NexShows will use the inquiry to start the right system discussion.
Start a project inquiry
