LK-FB2 · OUTDOOR FRONT-SERVICE LED
LK-FB2 Outdoor Front-Service LED Display
A larger-format front-service outdoor cabinet.
LK-FB2 is an outdoor front-service LED display series. The supplied configuration shows P3.91 to P10.41 options, 500 × 250 mm panel modules, a 1000 × 1000 mm cabinet and front-service access.
- Panel module
- 500 × 250 mm
- Cabinet format
- 1000 × 1000 mm
- Cabinet weight
- 20 kg shown
NEXSHOWSOUTDOOR FRONT-SERVICE LED DISPLAY
WHY THIS SERIES
A larger-format front-service cabinet for public outdoor media.
LK-FB2 is based on 500 × 250 mm panels and a 1000 × 1000 mm aluminum cabinet. Its P3.91 to P10.41 range, front-service layout and outdoor protection make it a candidate for large facades and public advertising screens.
Choose LK-FB2 when the 1000 mm cabinet grid aligns with the structure and screen dimensions. NexShows confirms pitch, brightness, cabinet quantity and access method from the project drawing.
500 × 250 mm panel
The series uses a 500 × 250 mm panel module in the supplied configuration.
1000 × 1000 mm cabinet
The product table shows a 1000 × 1000 mm cabinet format.
Outdoor pitch range
P3.91 to P10.41 configurations are shown for outdoor screen applications.
LARGE-FORMAT CABINET
Use a 1000 mm cabinet grid with front-service panels.

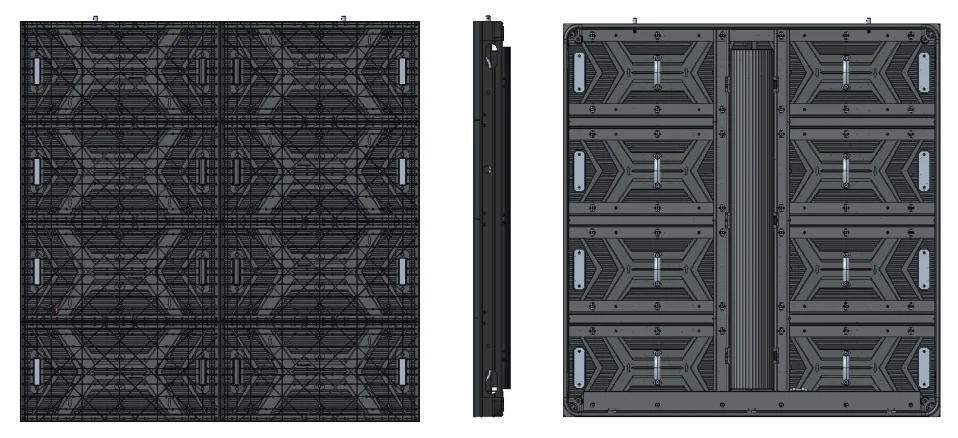

The technical view shows eight 500 × 250 mm panels inside the 1000 × 1000 mm cabinet, together with the side profile and rear structure. This makes cabinet-count and structural planning easier to discuss.
- 500 × 250 mm panel modules
- 1000 × 1000 mm aluminum cabinet
- 20 kg cabinet weight shown

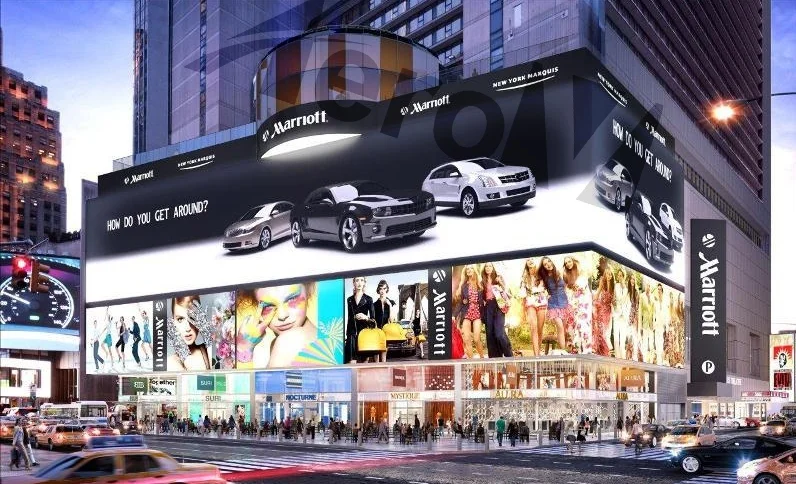

PUBLIC MEDIA APPLICATION
Scale the cabinet grid for a high-impact outdoor canvas.
The product family is intended for large public-facing screens. Pitch should be selected from the viewing distance, while brightness and protection are checked against the orientation and local outdoor conditions.
- P3.91 to P10.41 supplied range
- Front IP65 / rear IP54 shown
- Large facades and outdoor advertising
PROJECT FIT
Where LK-FB2 Front Service belongs.
Choose LK-FB2 when the 1000 mm cabinet grid aligns with the structure and screen dimensions. NexShows confirms pitch, brightness, cabinet quantity and access method from the project drawing.
- Outdoor advertising
- Commercial facades
- Large display walls
- Public-facing media screens
SERIES SPECIFICATIONS
Key system data.
AVAILABLE CONFIGURATIONS
Compare the supplied models.
| Pixel pitch | Brightness shown | Protection shown | Cabinet |
|---|---|---|---|
| P3.91 / P4.81 | ≥4500 / ≥5000 cd/m² | Front IP65 / rear IP54 | 1000 × 1000 mm |
| P6.25 / P7.81 | ≥6000 cd/m² | Front IP65 / rear IP54 | 1000 × 1000 mm |
| P10.41 | ≥6000 cd/m² | Front IP65 / rear IP54 | 1000 × 1000 mm |
The figures shown are taken from the supplied LK-FB2 series material. NexShows confirms final pitch, protection level and cabinet configuration with each project.
