Outdoor pitch coverage
The supplied range covers P2.5 through P10 for different viewing distances and screen sizes.
LK-FA · OUTDOOR FIXED LED
LK-FA Outdoor Fixed LED Display
A fixed outdoor system for the public-facing screen.
LK-FA is an outdoor fixed LED display series for roadside media, commercial settings and building exteriors. The supplied configuration shows a die-casting magnesium cabinet, P2.5 to P10 coverage and a 960 × 960 mm cabinet format.
- Pixel-pitch range
- P2.5–P10
- Cabinet format
- 960 × 960 mm
- Cabinet material
- Die-cast magnesium
NEXSHOWSOUTDOOR FIXED LED DISPLAY
WHY THIS SERIES
A fixed outdoor cabinet built for public-facing media.
LK-FA brings a broad outdoor pitch range into one 960 × 960 mm cabinet platform. Its die-cast magnesium construction and selectable front or rear service approach make it a starting point for roadside, retail and building-mounted display projects.
The right LK-FA configuration is determined by viewing distance, screen dimensions, target brightness and available maintenance access. NexShows confirms all four before finalizing the bill of materials.
Fixed-install format
A 960 × 960 mm cabinet format is shown for exterior and commercial display applications.
Magnesium cabinet
The supplied series information specifies a die-casting magnesium cabinet.
Service options
The supplied specifications show front or rear service approaches by configuration.

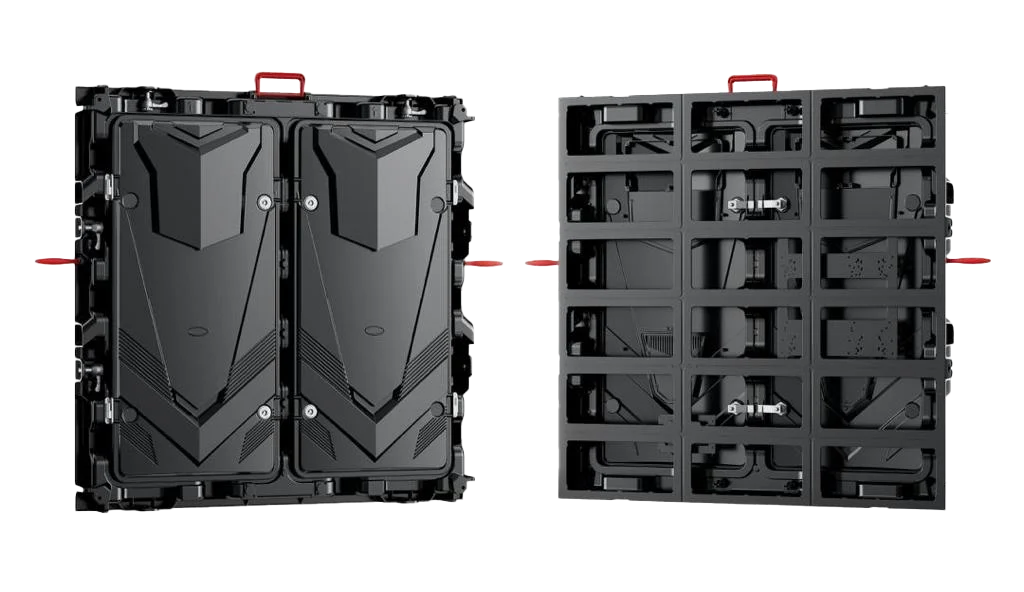

CABINET CONSTRUCTION
Front and rear views reveal the complete fixed-install system.
The 960 × 960 mm cabinet is shown with a protected rear enclosure and a structured internal frame. The platform uses 320 × 160 mm modules and supports front- or rear-service configurations according to the selected model.
- 960 × 960 mm cabinet
- 320 × 160 mm module family
- Front or rear service by configuration

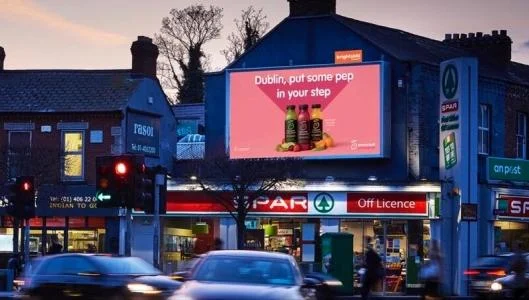

OUTDOOR APPLICATION
Select brightness and pitch for the real viewing condition.
The supplied range spans P2.5 to P10, with brightness values up to 6500 cd/m² shown for larger-pitch models. That range supports projects from closer commercial viewing to larger public media screens.
- Roadside and public media
- Commercial facades and retail exteriors
- Brightness confirmed by selected pitch
PROJECT FIT
Where LK-FA Series belongs.
The right LK-FA configuration is determined by viewing distance, screen dimensions, target brightness and available maintenance access. NexShows confirms all four before finalizing the bill of materials.
- Roadside media
- Commercial facades
- Retail and shopping areas
- Building exteriors
SERIES SPECIFICATIONS
Key system data.
AVAILABLE CONFIGURATIONS
Compare the supplied models.
| Pixel pitch | Brightness shown | Service | Cabinet |
|---|---|---|---|
| P2.5 / P3.076 / P4 | ≥5500 / ≥5800 cd/m² | Rear or front | 960 × 960 mm |
| P5 / P5.926 / P6.667 | ≥5500 cd/m² | Rear or front | 960 × 960 mm |
| P8 / P10 | ≥6500 cd/m² | Rear or front | 960 × 960 mm |
The figures shown are taken from the supplied LK-FA series material. NexShows confirms the final pitch, brightness, service method and cabinet configuration with each project.
