LK-FB1 · OUTDOOR FRONT-SERVICE LED
LK-FB1 Outdoor Front-Service LED Display
A front-service panel system for outdoor media.
LK-FB1 is an outdoor front-service LED display series. The supplied data shows P4 to P10 pitch options, 480 × 320 mm panel modules, a 960 × 960 mm cabinet and front-service access.
- Panel module
- 480 × 320 mm
- Cabinet format
- 960 × 960 mm
- Service
- Front access
NEXSHOWSOUTDOOR FRONT-SERVICE LED DISPLAY
WHY THIS SERIES
A front-service outdoor panel built around a 960 mm cabinet.
LK-FB1 uses 480 × 320 mm front-service panels in a 960 × 960 mm cabinet. The supplied range covers P4 to P10 and combines front access with outdoor protection for commercial media and building-mounted display walls.
Use LK-FB1 when a 960 mm cabinet grid suits the structure and front service is preferred. Pitch, brightness, protection and supporting frame must still be confirmed for the site.
480 × 320 mm panel
The series is organized around a 480 × 320 mm panel module.
960 × 960 mm cabinet
The supplied table shows a 960 × 960 mm cabinet format.
Outdoor pitch range
P4 to P10 configurations are shown for outdoor applications.
CABINET ARCHITECTURE
See the panel grid, cabinet depth and rear structure together.

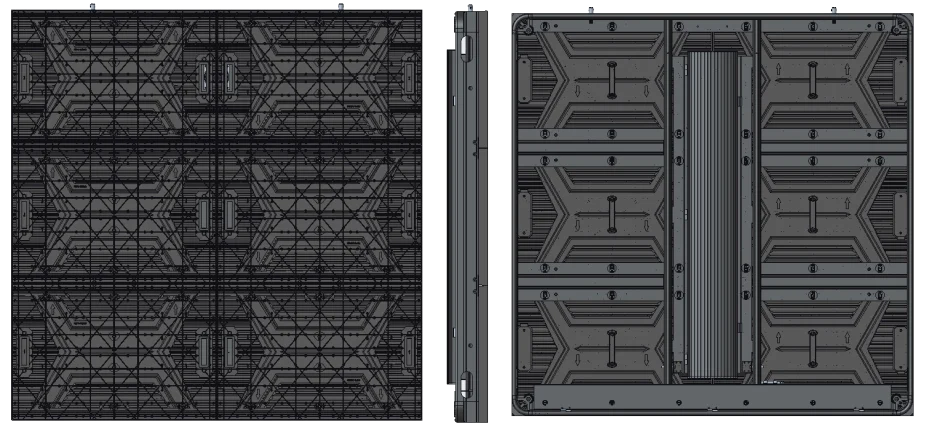

The technical view shows the 2 × 3 arrangement of 480 × 320 mm panels inside the 960 × 960 mm cabinet, with the profile and rear structure visible for installation planning.
- 480 × 320 mm front-service panels
- 960 × 960 mm cabinet
- 25 kg cabinet weight shown
BUILDING-MOUNTED MEDIA
Keep service access independent of the building interior.
Front-service panels are useful on facades where rear access is limited. NexShows coordinates the cabinet grid with the supporting steelwork, ventilation path and safe module-removal procedure.
- Outdoor commercial displays
- Front IP65 / rear IP54 shown
- P4, P5, P6.67, P8 and P10 options
PROJECT FIT
Where LK-FB1 Front Service belongs.
Use LK-FB1 when a 960 mm cabinet grid suits the structure and front service is preferred. Pitch, brightness, protection and supporting frame must still be confirmed for the site.
- Outdoor media
- Commercial display walls
- Public information screens
- Building-mounted LED displays
SERIES SPECIFICATIONS
Key system data.
AVAILABLE CONFIGURATIONS
Compare the supplied models.
| Pixel pitch | Brightness shown | Protection shown | Cabinet |
|---|---|---|---|
| P4 / P5 | ≥4500 / ≥5000 cd/m² | Front IP65 / rear IP54 | 960 × 960 mm |
| P6.67 / P8 | ≥6000 cd/m² | Front IP65 / rear IP54 | 960 × 960 mm |
| P10 | ≥6000 cd/m² | Front IP65 / rear IP54 | 960 × 960 mm |
The figures shown are taken from the supplied LK-FB1 series material. NexShows confirms final pitch, protection level and cabinet configuration with each project.
