LK-ES · OUTDOOR ENERGY-SAVING LED
LK-ES Energy-Saving Outdoor LED Display
An outdoor display system with an energy-saving configuration.
LK-ES is an outdoor LED display series supplied with energy-saving configuration options. The material shows 320 × 160 mm and 320 × 320 mm module families, P3.33 to P10 pitch coverage and a 960 × 960 mm cabinet format.
- Pixel-pitch range
- P3.33–P10
- Cabinet format
- 960 × 960 mm
- System focus
- Energy-saving outdoor LED
NEXSHOWSOUTDOOR ENERGY-SAVING LED DISPLAY
WHY THIS SERIES
An outdoor platform configured around lower operating demand.
LK-ES is the energy-saving branch of the outdoor fixed range. It combines a 960 × 960 mm cabinet with 320 × 160 mm or 320 × 320 mm modules and front-service configurations across the supplied model families.
Energy performance depends on the selected module, brightness target, content and operating schedule. NexShows confirms the exact configuration and expected operating conditions at project stage.
Two module formats
320 × 160 mm and 320 × 320 mm modules are shown across the supplied configurations.
Outdoor pitch range
The range covers P3.33 through P10 for outdoor viewing distances.
Front-service approach
The supplied model tables show front-service configurations for the series.

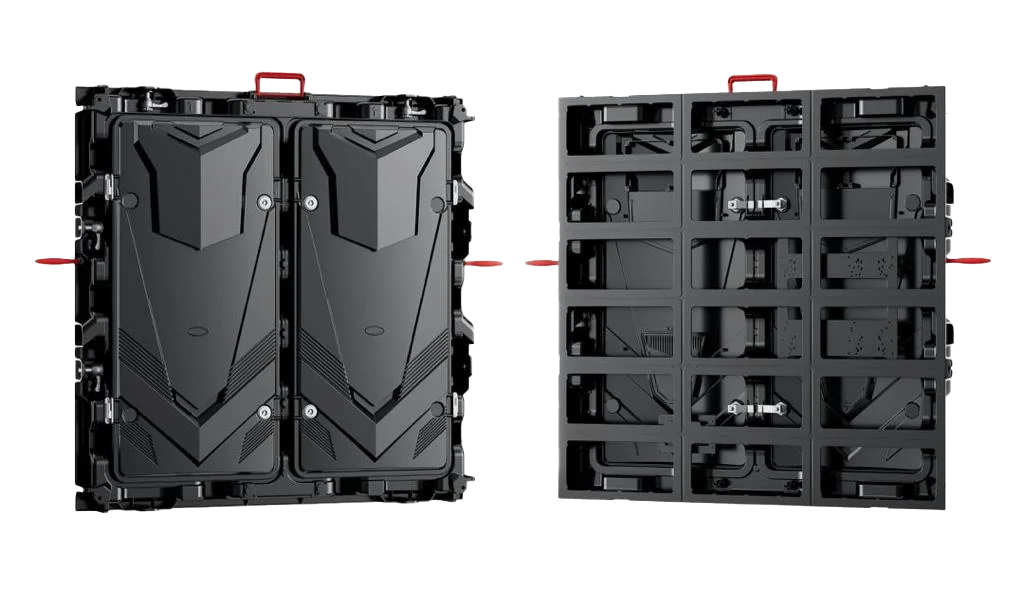

CABINET PLATFORM
Use one cabinet format across two module families.
The supplied configurations use a 960 × 960 mm cabinet with either 320 × 160 mm or 320 × 320 mm modules. This provides a practical framework for selecting pitch while keeping the overall cabinet geometry consistent.
- 960 × 960 mm cabinet
- 320 × 160 and 320 × 320 mm modules
- Front-service configurations shown

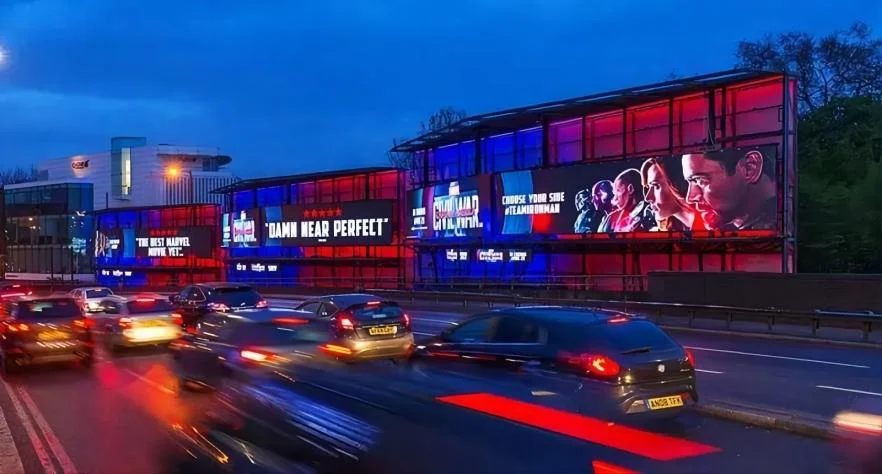

OPERATING CONTEXT
Evaluate energy saving over the complete display schedule.
Large outdoor screens run for long periods, so brightness settings, content load and operating hours affect the real result. The product selection should balance visibility with the planned duty cycle.
- Outdoor media and public information
- P3.33 to P10 supplied range
- Brightness and schedule reviewed together
PROJECT FIT
Where LK-ES Energy-Saving Series belongs.
Energy performance depends on the selected module, brightness target, content and operating schedule. NexShows confirms the exact configuration and expected operating conditions at project stage.
- Outdoor media
- Commercial exteriors
- Public information
- Large-format display walls
SERIES SPECIFICATIONS
Key system data.
AVAILABLE CONFIGURATIONS
Compare the supplied models.
| Configuration | Pixel pitch | Module size | Cabinet |
|---|---|---|---|
| Energy-saving series A | P3.33 / P4 / P5 / P5.926 / P8 / P10 | 320 × 160 mm | 960 × 960 mm |
| Energy-saving series B | P6.667 / P8 / P10 | 320 × 320 mm | 960 × 960 mm |
The figures shown are taken from the supplied LK-ES series material. NexShows confirms final energy configuration, pitch, brightness and cabinet selection with each project.
