Modular cabinet construction
Modules, cabinet frames and power supplies are configured as separate serviceable parts.
M SERIES · RENTAL & CREATIVE LED
M Series Rental & Creative LED Display
Configure the screen around the build.
M Series is a rental and creative LED cabinet system with 500 × 500 mm and 500 × 1000 mm formats. The 500 × 500 mm cabinet supports the supplied curved, 90-degree and cube-style screen configurations.
- Cabinet formats
- 500 × 500 / 500 × 1000 mm
- 500 × 500 geometry
- Flat, curved, 90° and cube
- Refresh rate
- Up to 7680 Hz
NEXSHOWSRENTAL & CREATIVE LED DISPLAY
WHY THIS SERIES
One rental platform for standard screens and creative structures.
M Series is built for teams that need a familiar rental workflow without limiting the final screen geometry. Two cabinet heights and multiple module-service approaches cover conventional event walls, while the 500 × 500 mm cabinet adds the supplied curve, 90-degree and cube options.
Choose the cabinet format, service direction and curve requirement together. NexShows will then match the pixel pitch and rigging method to the viewing distance, screen size and installation plan.
500 × 500 creative splicing

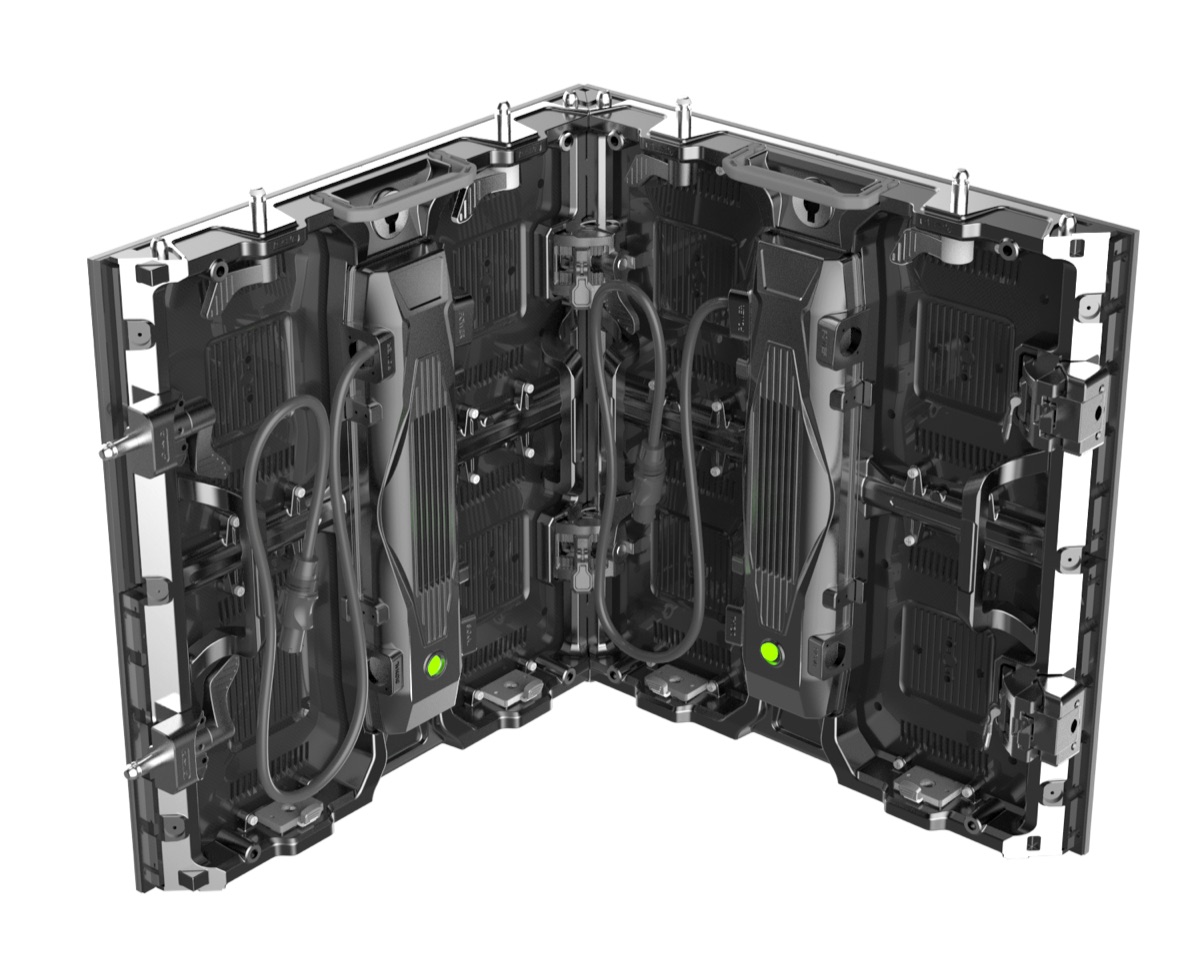

The 500 × 500 mm cabinet supports the supplied 90-degree, cube and −15° to +15° curved screen concepts.
Service approach
Magnetic-module configurations support front and rear access; screw-fixed modules are rear-service only.
Deployment options
The supplied series material shows both stacking and hanging installation approaches.
CREATIVE CONFIGURATION

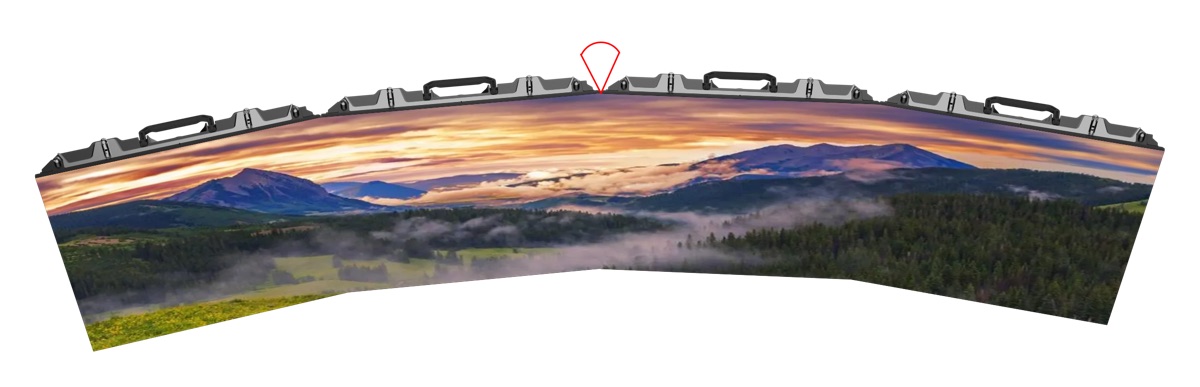

Curve the 500 × 500 cabinet without changing platforms.
The 500 × 500 mm cabinet is shown with an adjustable curve lock from −15° to +15°. That gives the project team a practical path from a flat wall to convex or concave layouts while keeping the same cabinet family.
- −15° to +15° curve-lock range
- 90-degree and cube-style concepts shown
- 500 × 500 mm creative cabinet
INSTALLATION PATH
Plan the support method around the venue.
The supplied M Series material shows both ground-stacked and suspended builds. This lets a project discussion start with the real site constraint: floor loading and stack height, or the available overhead rigging points.

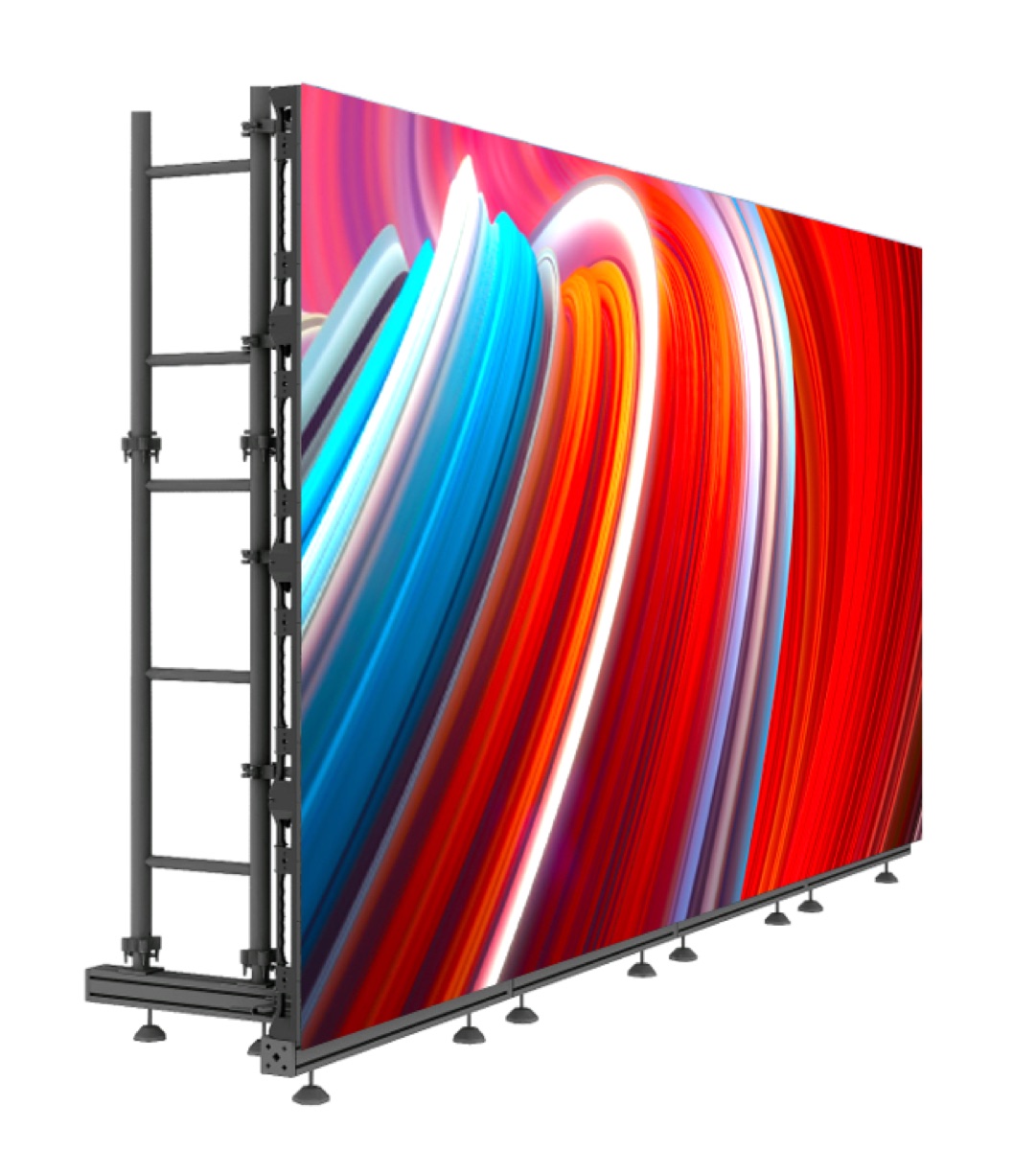

- Ground-stacking configuration

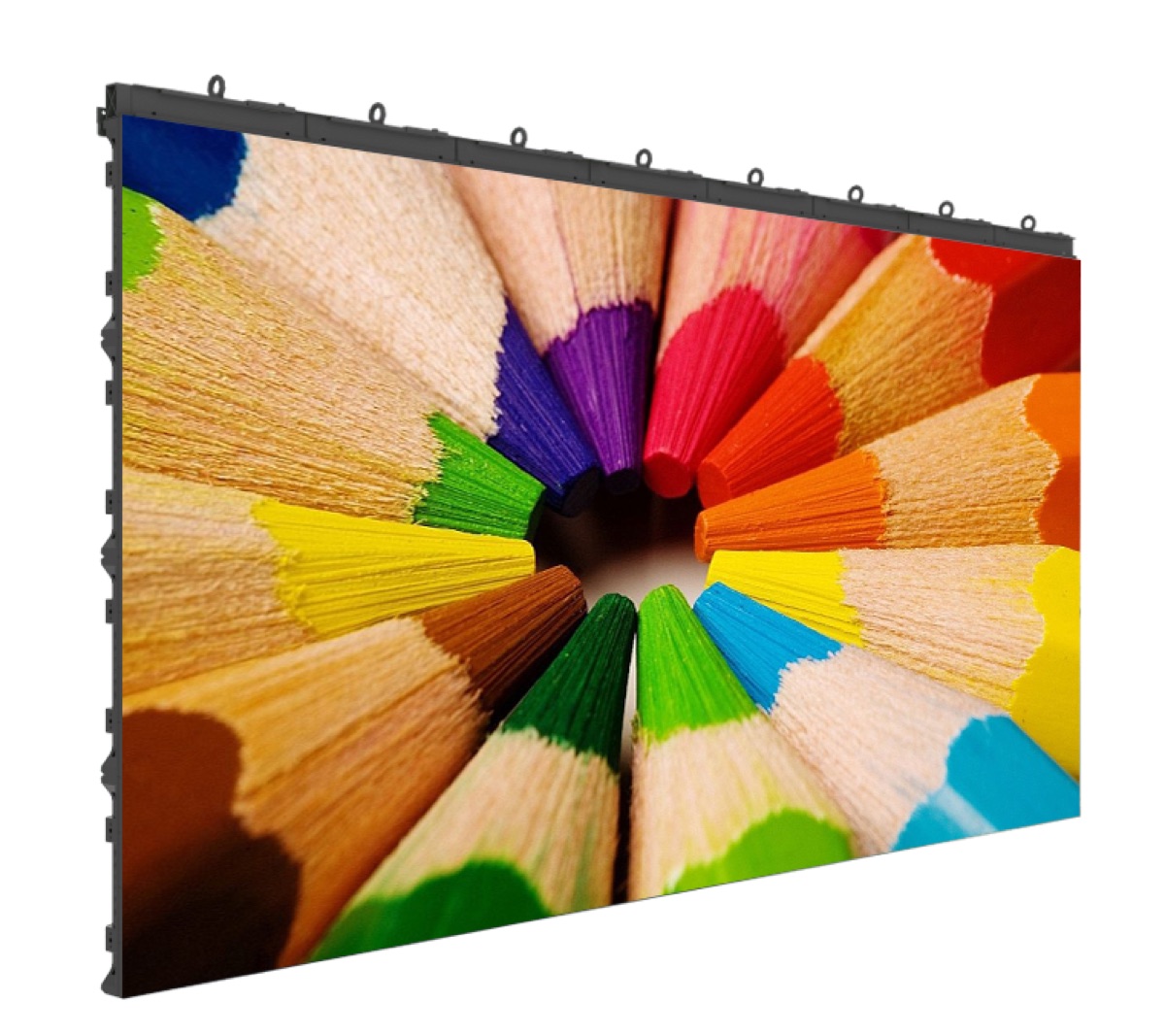

- Hanging installation configuration
- 500 × 500 and 500 × 1000 mm cabinets
RIGGING VIEW
Keep taller rental walls efficient to assemble.
The 500 × 1000 mm cabinet reduces the number of cabinet joints in tall screens, while the 500 × 500 mm option remains available where finer geometric control is needed.
- Two compatible cabinet heights
- Fast-lock rental construction
- Project-specific hanging-bar selection
PROJECT FIT
Where M Series belongs.
Choose the cabinet format, service direction and curve requirement together. NexShows will then match the pixel pitch and rigging method to the viewing distance, screen size and installation plan.
- Stages and touring
- Exhibitions and trade shows
- Creative screen builds
- Temporary displays
SERIES SPECIFICATIONS
Key system data.
AVAILABLE CONFIGURATIONS
Compare the supplied models.
| Version | Pixel pitch | Cabinet resolution | Cabinet weight |
|---|---|---|---|
| Indoor P1.95 | 1.95 mm | 256 × 256 | 7 kg (500 × 500) |
| Indoor P2.6 | 2.6 mm | 192 × 192 | 7 kg (500 × 500) |
| Indoor P2.9 | 2.9 mm | 168 × 168 | 7 kg (500 × 500) |
| Indoor P3.91 | 3.91 mm | 128 × 128 / 128 × 256 | 7 / 13 kg |
| Outdoor P3.91 | 3.91 mm | 128 × 128 / 128 × 256 | 7.5 / 13.5 kg |
The figures shown are taken from the supplied M Series product information. Final specification, service method and configuration should be confirmed for each project.
