Slim, lightweight cabinet
The cabinet is 69 mm deep and weighs approximately 6.8 kg at 500 × 500 mm, helping rental teams reduce handling effort.
AD SERIES · RENTAL & CREATIVE LED

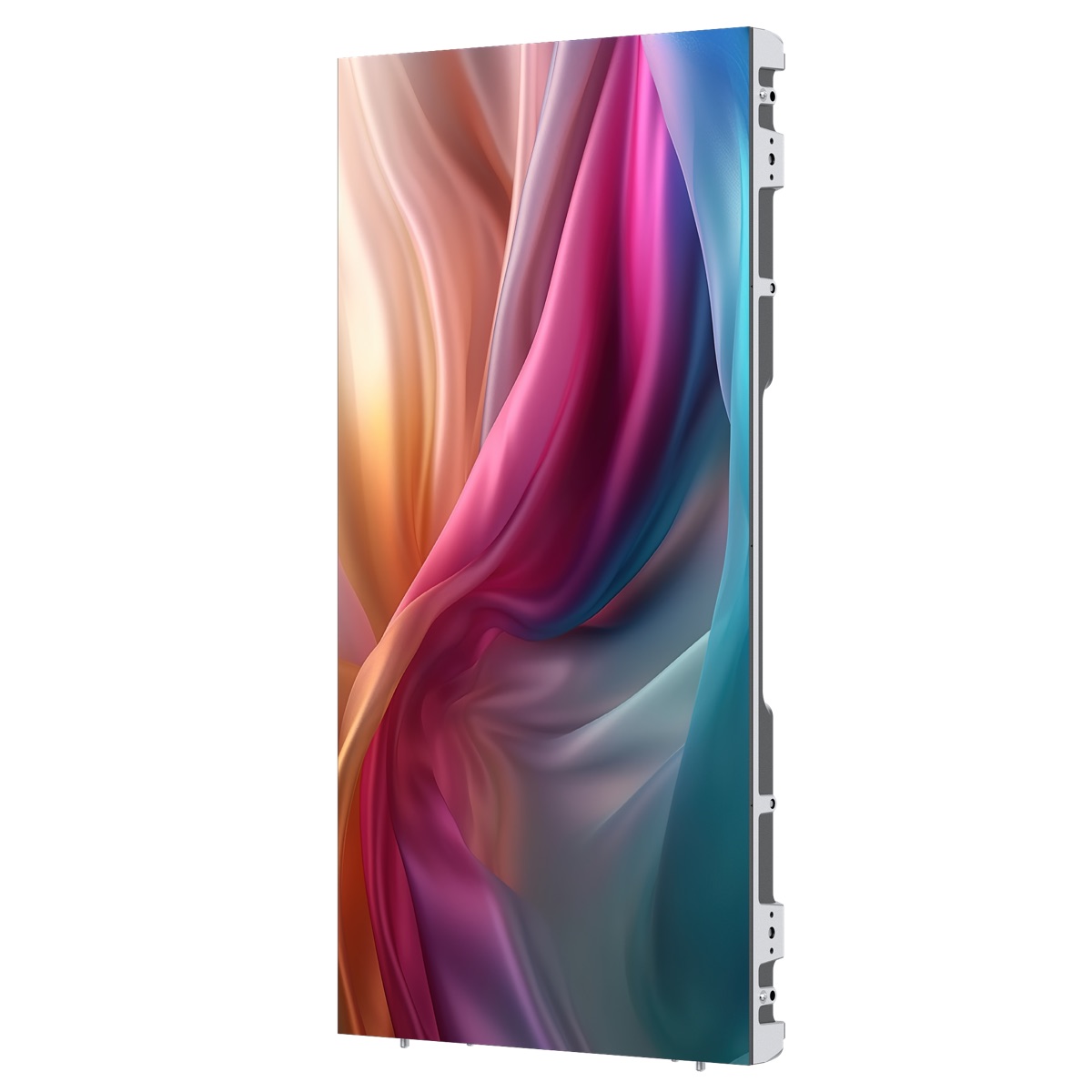

AD Series Lightweight Rental LED Display
Lightweight cabinets for faster builds.
AD Series is a 69 mm rental and creative LED display system with 500 × 500 mm and 500 × 1000 mm cabinet formats and front or rear module service. Both formats support the supplied curve-lock angles; 90-degree and cube builds use the 500 × 500 mm cabinet.
- Cabinet depth
- 69 mm
- Cabinet formats
- 500 × 500 / 500 × 1000 mm
- Corner protection
- Standard <P2.6 / optional ≥P2.6
NEXSHOWSLIGHTWEIGHT RENTAL & CREATIVE LED DISPLAY
WHY THIS SERIES
A lighter cabinet system designed to shorten the rental build.
AD Series combines a slim 69 mm cabinet, low cabinet weight, automatic corner protection and a serviceable modular architecture. Straight and curve locks support conventional walls and creative shapes, while the same product family covers indoor and outdoor configurations.
The final model depends on indoor or outdoor use, required brightness, pixel pitch and cabinet height. NexShows also confirms the corner-protection option and uses the 500 × 500 mm cabinet for 90-degree or cube builds.
Automatic corner protection
Automatic corner protection is shown as standard below P2.6 and optional for P2.6 and coarser configurations.
Serviceable architecture
Modules can be removed from the front or rear, and the supplied configuration uses an independent power box shared across both cabinet heights.
Controlled creative geometry
Both cabinet formats support 0°, ±5°, ±10° and ±15° curve-lock settings; 90-degree and cube builds use the 500 × 500 mm cabinet.
SERVICEABLE ARCHITECTURE
Remove the parts that matter from either side.

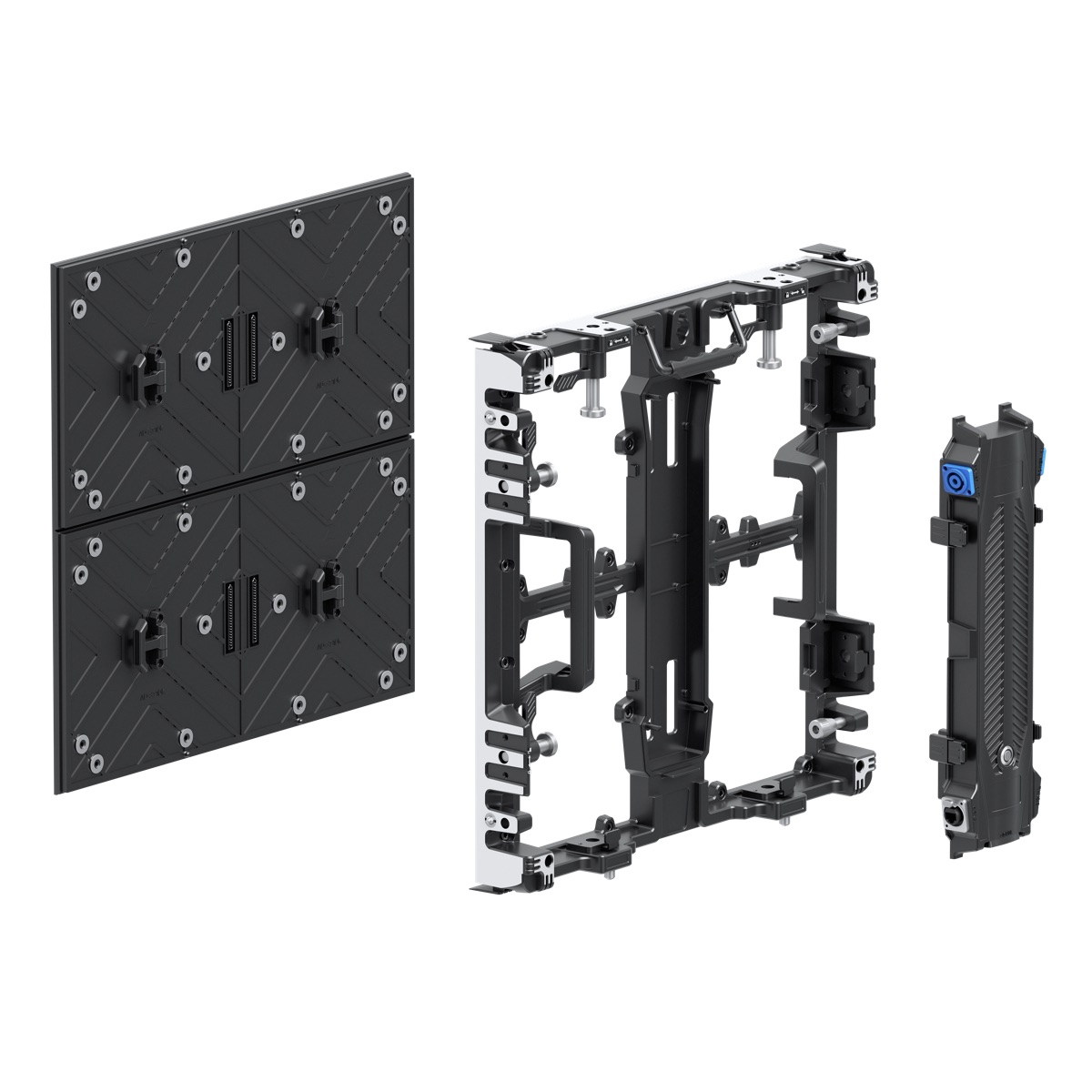

The cabinet is shown with detachable LED modules and an independent power box. Front and rear module access helps the system adapt to stages, temporary walls and installations where backstage clearance is limited.
- Front or rear module removal
- Independent power-box design
- Shared power box across both cabinet heights
CURVE CONTROL
Build straight, convex or concave screens with defined angles.

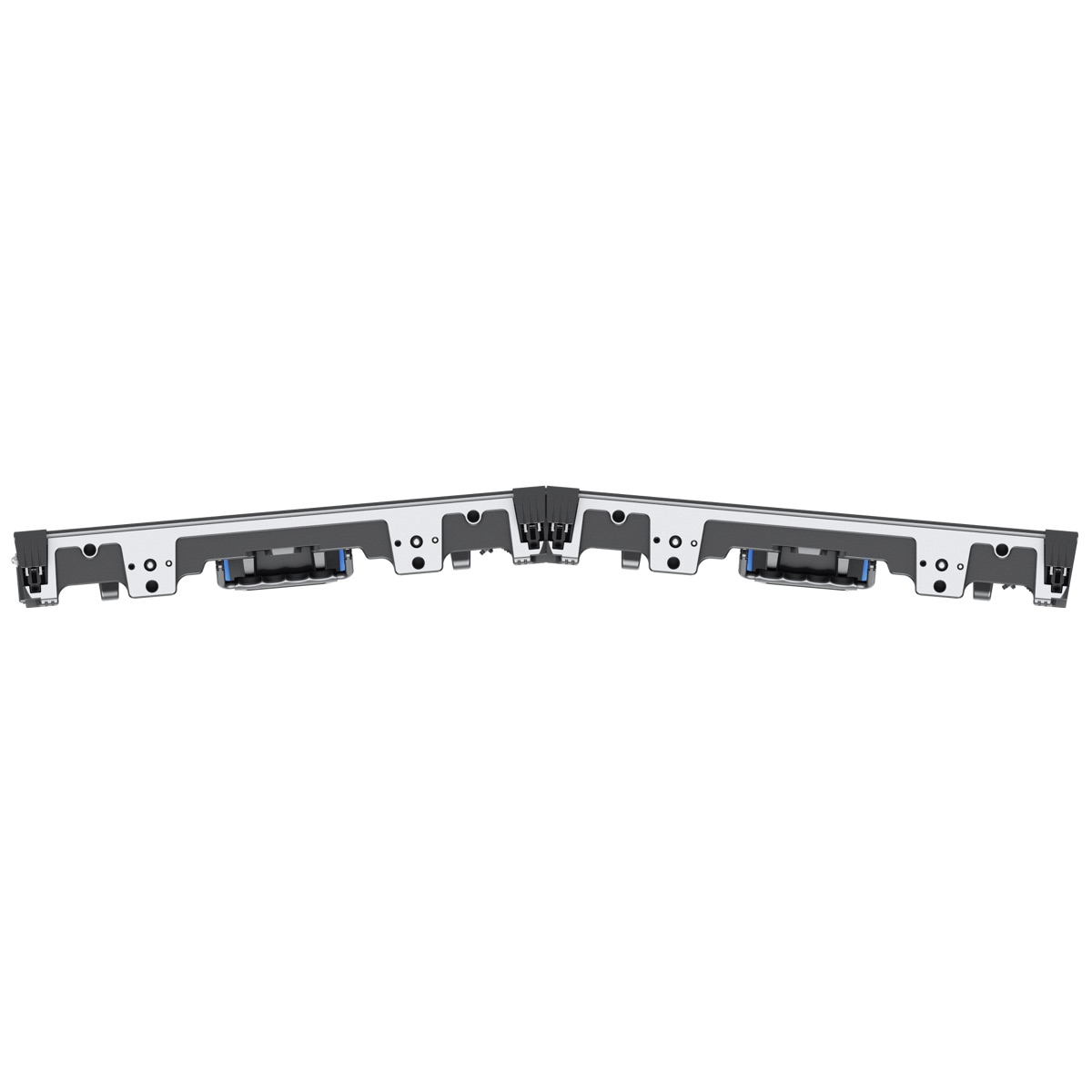

Both cabinet formats are shown with curve locks at 0°, ±5°, ±10° and ±15°. The stepped settings make it easier for the drawing, cabinet count and on-site build to stay aligned.
- 0°, ±5°, ±10° and ±15° settings
- Both cabinet heights support curve locks
- Straight locks and positioning pins
CREATIVE GEOMETRY
Move beyond a flat wall when the concept requires it.

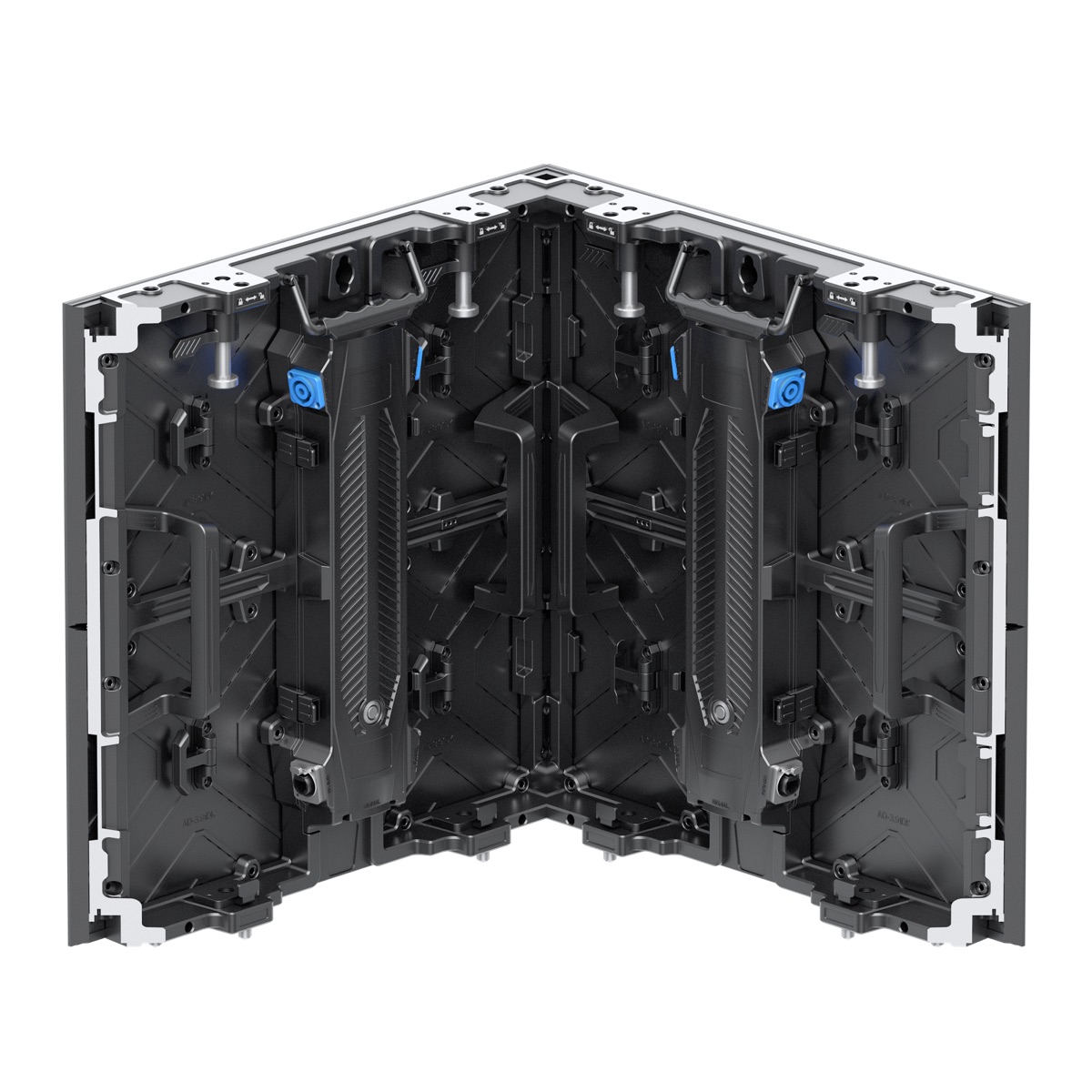

The 500 × 500 mm cabinet is presented in 90-degree and cube configurations in addition to curved screens. NexShows uses the final geometry to confirm edge treatment, cabinet orientation and service access.
- 500 × 500 mm creative cabinet
- 90-degree and cube-style concepts
- Geometry reviewed before configuration
PROJECT FIT
Where AD Series belongs.
The final model depends on indoor or outdoor use, required brightness, pixel pitch and cabinet height. NexShows also confirms the corner-protection option and uses the 500 × 500 mm cabinet for 90-degree or cube builds.
- Live events and rental
- Exhibitions
- Creative installations
- Indoor and outdoor display builds
SERIES SPECIFICATIONS
Key system data.
AVAILABLE CONFIGURATIONS
Compare the supplied models.
| Model | Pixel pitch | Brightness | Front / rear protection |
|---|---|---|---|
| R-191 | 1.9 mm | 800 nit | IP40 / IP20 |
| R-261 | 2.6 mm | 800 nit | IP40 / IP20 |
| R-291 | 2.9 mm | 800 nit | IP40 / IP20 |
| R-391 | 3.9 mm | 800 nit | IP40 / IP20 |
| R-290 | 2.9 mm | 3500 nit | IP65 / IP54 |
| R-390 | 3.9 mm | 3500 nit | IP65 / IP54 |
| R-480 | 4.8 mm | 3500 nit | IP65 / IP54 |
The figures shown are taken from the supplied AD Series product information. Final product configuration, brightness, protection rating and weight should be confirmed for each project.
